Standing seam roof roll forming machine
2024-08-19
Standing seam roof roll forming machine is a wide range of metal roofing panel.
There are hundreds of species roofing types. Different roof style need different roll forming machine to product. We have 15 years’ experience at this field .We committed to providing the best design solutions and the most perfect mechanical service .
Standing seam roof roll forming machine details :
| Machine components lists | ||
| Name | No. | Unit |
| 1.Electric decoiler | 1 | set |
| 2.Adjustable Material feeding device | 1 | set |
| 3.Pre -cutting | 1 | set |
| 4.Standing seam roll forming machine | 1 | set |
| 5.Final product cutting | 1 | set |
| 6.Control Computer | 1 | set |
| 7.Hydraulic pump | 1 | set |
| 8.production table for stack | 1 | set |
| 9.lock machine | 1 | set |

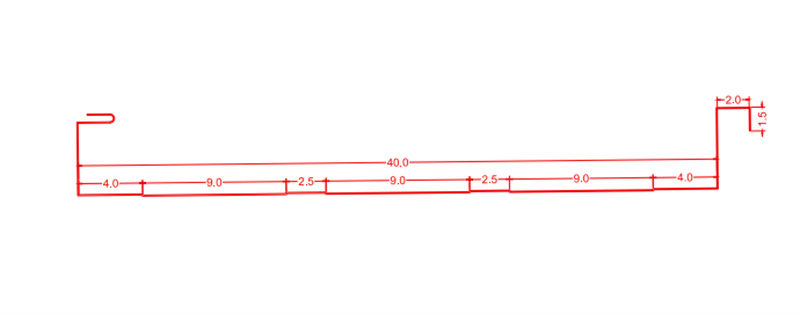

| Roofing profile |  | |
| EX-price | 19500.00 USD | |
1.Electric decoiler:
Support width : 20-120cm
Inner Diameter: Ø420mm-Ø550mm
Coil max diameter: 1500mm
Max support weight : 5 tons
Drive way : electric motor drive
2.Adjustable material feeding device:
Adjustable way: hands by wheel
Adjustable width:40cm-105cm
3.Pre -cutting
Cutting width: max 100cm
Cutting power:3kw hydraulic cutting
Cutting blade: Cr15
Cutting time: 2-3seconds/bout
Cutting thickness: max 1.2mm
4.Standing seam roll forming machine:
Power :5.5kw
Roller steps: 16 steps
Frame : 16mm plate and heavy steel square pipe bottom with stabilize legs
Frame Legs: 10 sets can adjust for level according to the ground
Shaft diameter :70mm
Drive way: 1 inch chain
Roller material : 45# steel polish and coated with chrome HRC58-62º
Shaft material: 45# steel with hot quench and polish
Work Speed:15-20m/min
Material :0.3mm-1.0mm all kinds of metal material
Machine shows:
5.Final product cutting ：
Cutting Slide rail: guide pillar
Cutting blade material : Cr15 full hardness mould
Cutting power: 3kw hydraulic
6.Control computer :
Control way : touch screen
Plc brand: Delta
Encoder Brand: Omron
Length error:±1mm
Computer language: Arabic/English /Chinese
Voltage: 380v 50hz/60hz ,3 phase （ according to yours)
7.Hydraulic pump :
Power: 3 kw ( 380v 50hz/60hz )
Oil : 46# hydraulic oil
Volume: 100 L
Cool way : fan
8.production table for stack:
Can assembly and disassembly
9.Lock machine ；
Power: electric ( 2 phase)
Control: Automatic
Lock speed：6-8m/min
1.How many Accessories :
| Counter | Solenoid valve | Travel switch | Hardware |
|  |
|
|
A.terms of payment
1.type of payment: 30% deposit in advance, when pick up the goods, the remaining need to be finished before transportation.
2. Delivery Time:20-30 days after the deposit.
3. installation and debugging:
In case of sending technician to buyers country, The Buyer should bear all the cost including: visa ,round trip ticket ,Safety, the translator and suitable accommodation, also buyer should pay the salary 150USD/day.
4. Products warranty:
12 months, we provide technical support for whole life of the equipment.
5. Packaging Details: Electric and hydraulic power unit and other accessories are packed in wooden cases, equipment for nude.
we are well-known in this field and our company has strong technical capabilities and advanced machining equipment.And our machines are sold all over the world. We look forward to cooperate...
