Automatic multifunction C and U shape roll forming machine
C purlin making machine remodel by hands details
Date: 2024/08/05
|
Machine components lists |
||
|
Name |
No. |
Unit |
| 1. decoiler |
1 |
set |
|
1 |
set |
| 3.Main forming machine |
1 |
set |
| 4.product cutting system |
1 |
set |
| 5.Control Computer |
1 |
set |
| 6.Hydraulic pump |
1 |
set |
1.coil decoiler:
Support width : 20-60cm
Inner Diameter: Ø420mm-Ø550mm
Coil max diameter: 1500mm
Max support weight : 5 tons
Drive way : electric motor drive
5. cutting ：
Cutting Slide rail: guide pillar
Cutting blade material : Cr15 full hardness mould
Cutting power: 4kw hydraulic
6.Control computer :
Control way : touch screen
Plc brand: Delta
Encoder Brand: Omron
Length error:±1mm
Computer language: Arabic/English /Chinese
Voltage: 380v 50hz/60hz ,3 phase （ according to yours)
7.Hydraulic pump :
Power: 3 kw ( 380v 50hz/60hz )
Oil : 46# hydraulic oil
Volume: 100 L
Cool way : fan
Our product process :

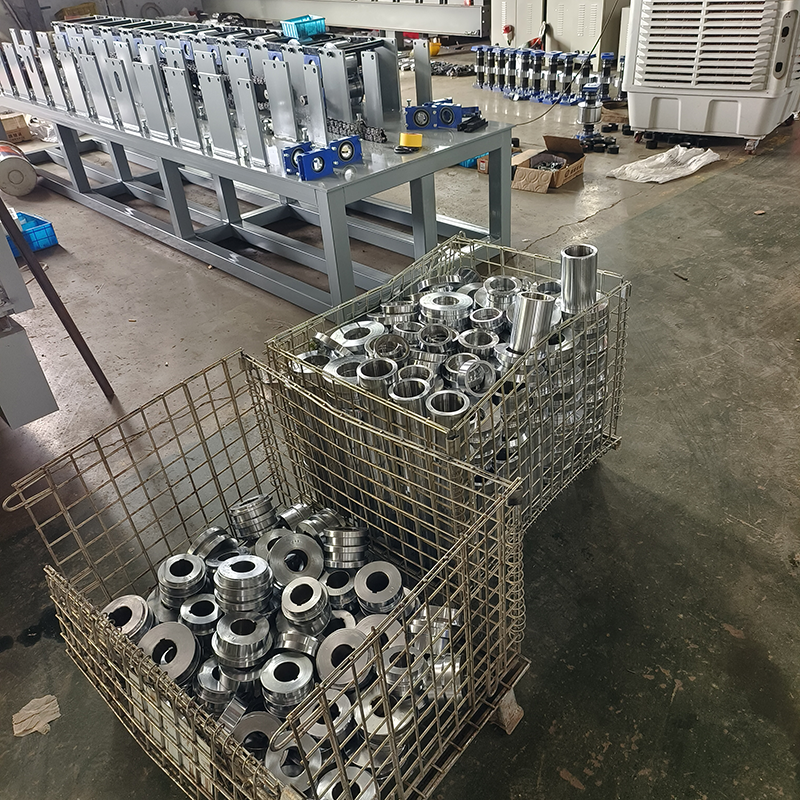

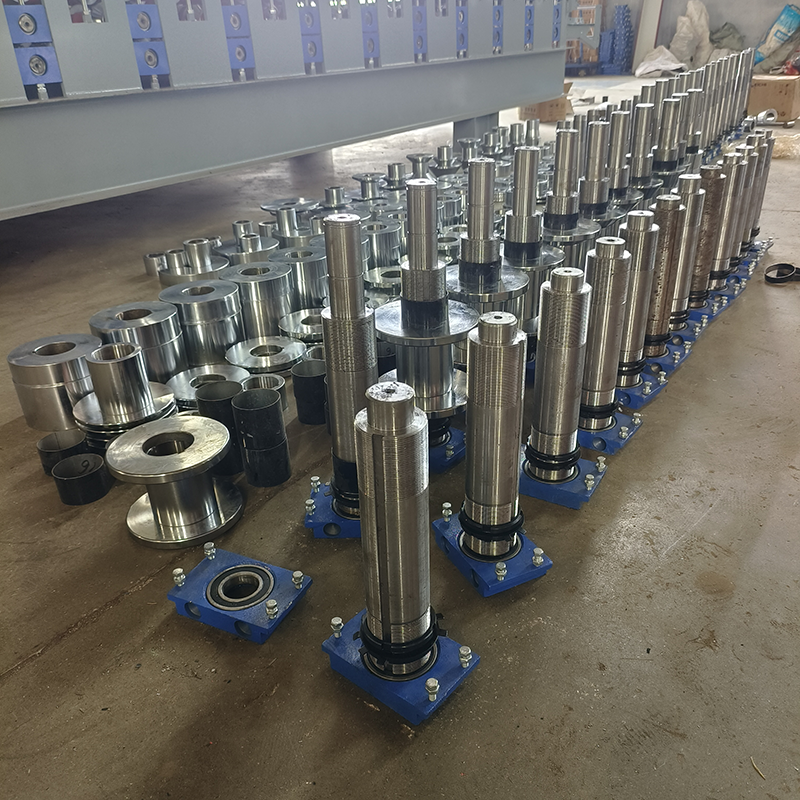

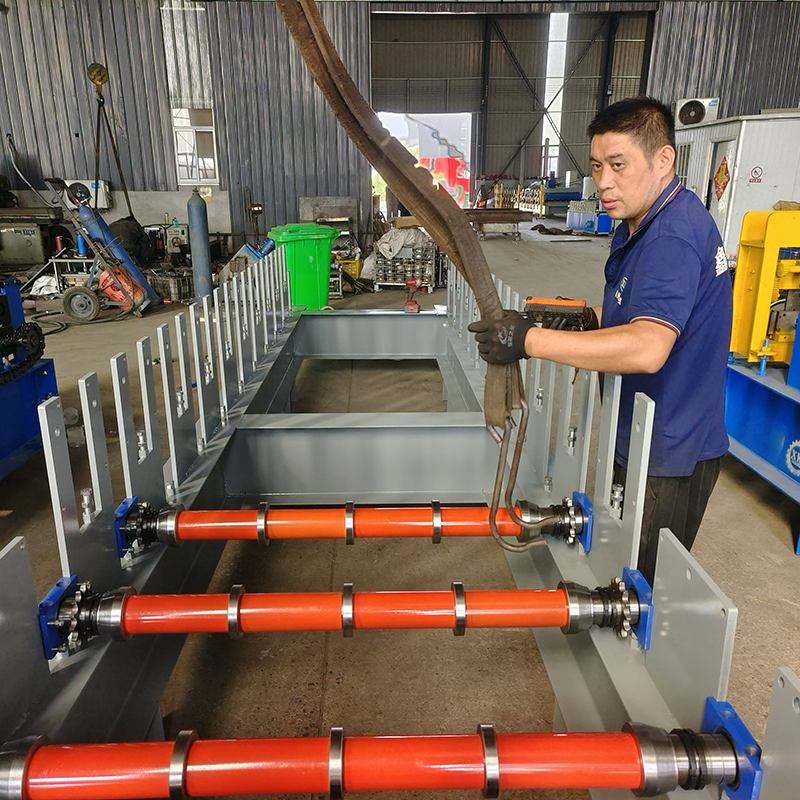

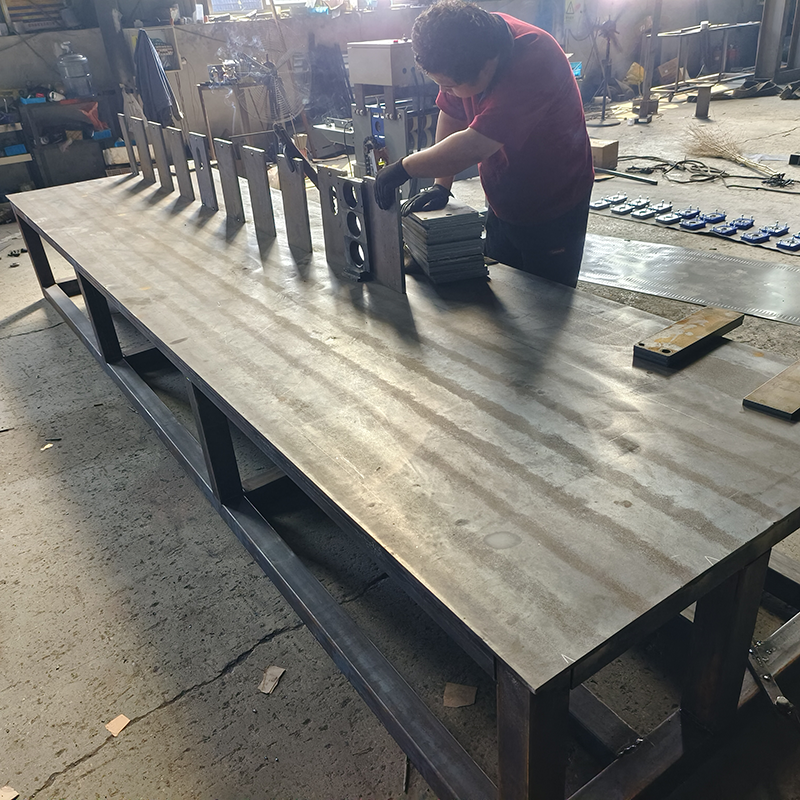

One machine product include design and product, product include body weld, roller lathe and shaft lathe and assembly and adjust and control system fix and test .
|
|
|
|
1.How many Accessories :
| Counter | Solenoid valve | Travel switch | Hardware |
|
|
|
|
How to making order:
Contact us and tell us your requirements. After communicating the price and model, we will charge 30% of the equipment price as the deposit according to the contract. After receiving the deposit, we will start to produce the equipment. We will strictly produce in accordance with the contract. After meeting the requirements, we will carry out tests. We will not deliver the goods until the equipment passes the tests.
Included accessories
| Counter | Solenoid valve | Travel switch | Hardware |
 |
 |
 |
 |
